Our CNC machines
At Dimatec, precision isn’t just a service, it’s our standard. With a full fleet of 2-9 axis CNC lathes, we deliver high-complexity components with accuracy, repeatability, and fast turnaround. Our machines are meticulously maintained and operated by skilled machinists who treat every part like it’s mission-critical, ensuring consistent quality from prototype to production.
Machines and Capabilities

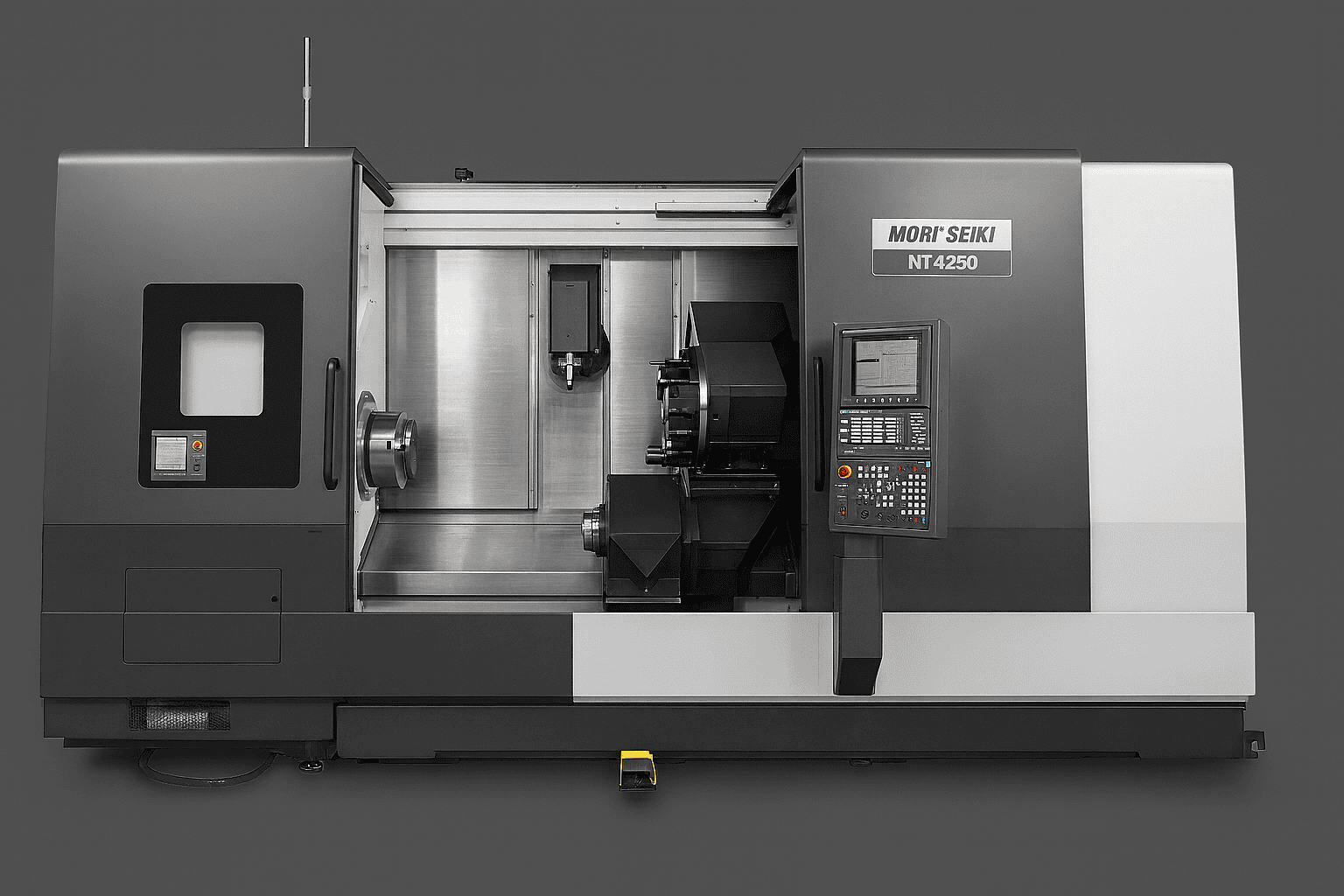

Mori Seiki NT 4250
High-precision multi-axis mill-turn center designed to machine complex parts in a single setup, combining powerful turning, full 9-axis milling, and exceptional rigidity.
9-axis multi-task machining centre with twin spindle and twin turret.
Its advanced DCG design, large work envelope, and sub-spindle capabilities make it ideal for producing high-tolerance OEM components efficiently and consistently.
Max Dia. 28.7"
Max Length 60.7"
Doosan Puma SMX3100ST
The Doosan Puma SMX3100ST is a high-performance multi-tasking mill-turn center that combines CNC turning, milling, Y-axis offset, and B-axis machining in a single setup for maximum efficiency and precision.
9-axis multi-task machining centre with twin spindle and twin turret.
Max Dia. 26"
Max Length 60.6"
Doosan Puma MX2600ST
High-end, integrated 9-axis CNC turning/milling center that combines turning and milling capabilities to finish complex cylindric or prismatic parts in a single setup — reducing or eliminating the need for secondary operations.
9-axis multi-task machining centre with twin spindle and twin turret
It supports turning up to 760 mm diameter and 1,540 mm length, with dual spindles, Y-axis milling, and a high-speed milling spindle, well suited for precision work in aerospace, oil & gas, or heavy-duty OEM manufacturing.
Max Dia. 26.9"
Max Length 60.6"
Doosan Puma 2600Y
The Doosan Puma 2600Y is a robust, horizontal-bed CNC lathe with Y-axis capability, built for precision machining of medium to large parts.
Single spindle Y-axis twin horizontal turning centre
Its rigid construction ensures excellent stability and repeatability, making it well suited for OEM work.
Max Dia. 30.7"
Max Length 30"
Doosan Puma 2600SY
Heavy-duty, multi-axis CNC turning center designed to deliver precision machining and complex part capabilities in a single setup.
Twin spindle Y-axis twin horizontal turning centre
With a 10″ chuck, dual-spindle configuration, Y-axis milling and live tooling, it’s ideal for machining intricate components efficiently.
Max Dia. 30.7"
Max Length 30"
Doosan Puma TT 1800SY
High-productivity, twin-turret/twin-spindle CNC turning center engineered for efficient, complex machining in a single setup.
Twin spindle, twin turret horizontal turning centre
With dual 22 kW 5,000 RPM spindles, two 12-station (24-index) turrets, Y-axis and live-tooling/milling capability.
Max Dia. 9.7"
Max Length 38.5"
Doosan Lynx 220LM
Compact, high-efficiency CNC turning center that’s well suited to tight-tolerance, small- to medium-sized parts.
3-axis horizontal turning centre with milling function
A combination of a stout cast-iron construction, live tooling, and user-friendly controls makes it a dependable choice for shops producing precision components
Max Dia. 20.1"
Max Length 20.1"
Doosan Puma 700L
Heavy-duty horizontal CNC lathe built for large, long workpieces and demanding machining jobs.
2-axis horizontal turning centre
With a 24″ chuck, 124" turning length, a powerful 60 HP spindle, solid box-way construction and a 12-station turret, the PUMA 700L delivers the strength, rigidity and flexibility needed for robust industrial applications.
Max Dia. 39.37"
Max Length 120"
Doosan Puma 300LMC
Versatile CNC turning center offering a compact footprint while delivering robust performance for machining small- to medium-sized components.
3-axis horizontal turning centre with milling function
With a capable spindle, live-tooling and turning capabilities, and a rigid frame for precision, it is well-suited for job shops and OEM shops needing an efficient, flexible machine for varied production needs.
Max Dia. 23.2"
Max Length 47.83"
Doosan Puma 280
Dependable, medium-sized CNC lathe engineered for stable, accurate turning of small- to medium-diameter workpieces.
2-axis horizontal turning centre
With a solid bed, capable spindle and user-friendly controls, it is a reliable choice for shops producing standard parts in moderate volumes offering a good balance of capacity, precision, and economical operation.
Max Dia. 24.8"
Max Length 25.9"
Doosan Puma GT3100
Robust, industry-class horizontal CNC lathe that blends strength, precision, and efficiency for medium- to heavy-duty turning jobs.
2-axis horizontal turning centre
Built with productivity in mind, fast rapid traverse, a 10-station turret, and a high-torque spindle make it ideal for oil-field components, heavy-machined parts, or batches where repeatability and durability are critical.
Max Dia. 28.34"
Max Length 29.7"
Doosan Puma 4100B
Medium-to-large horizontal CNC turning center built for heavy, high-throughput machining.
2-axis horizontal turning centre
With a 15-inch chuck, a powerful 45 kW spindle delivering high torque, and a robust box-guideway construction, it offers the strength and precision needed for machining larger, demanding workpieces
Max Dia. 31.1"
Max Length 41"
Dimatec Certifications
ISO 9001:2015 – Quality Management System
Dimatec is fully certified to ISO 9001:2015, covering:
-
Manufacturing of diamond drilling tools
-
CNC machining of OEM components
-
Quality management, traceability, and continuous improvement
-
Customer satisfaction processes and corrective actions
